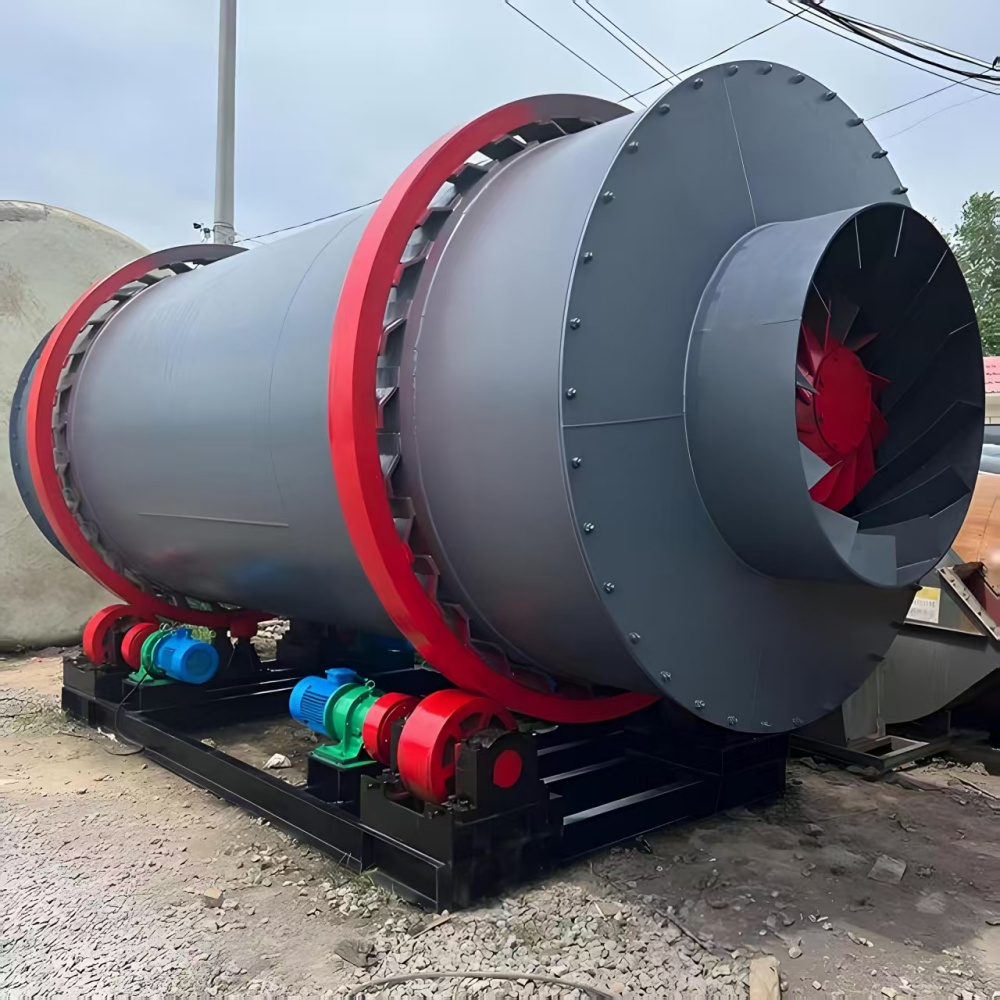

In aggregate production lines, the three cylinder dryer serves as core equipment for large-scale sand drying. When processing high-moisture river sand, manufactured sand and quartz sand, the three cylinder dryer can carry out continuous and stable sand drying to meet moisture standards of dry-mix mortar and ready-mix concrete industries.

1.Core Equipment for Aggregate Drying

In aggregate production lines, the three cylinder dryer serves as core equipment for large-scale sand drying. When processing high-moisture river sand, manufactured sand and quartz sand, the three cylinder dryer can carry out continuous and stable sand drying to meet moisture standards of dry-mix mortar and ready-mix concrete industries.

2.Working Characteristics of Drying Materials

Let’s analyze material characteristics. Sand particles have high hardness and retain moisture within intergranular gaps. Ordinary single drum dryers have low heat exchange efficiency. The three cylinder dryer optimizes heat transfer routes specially for sand dewatering.

Sand size is measured in mesh count.

3.Structure & Working Principle

The three cylinder dryer adopts triple concentric nested drums. The complete unit consists of main drum, riding ring & supporting roller driving assembly, hot air system, feeding/discharging sealing parts and dust removal connector. Under the stirring of lifting plates, wet sand forms uniform material curtain inside, and hot air circulates through three layers for sufficient heat exchange.

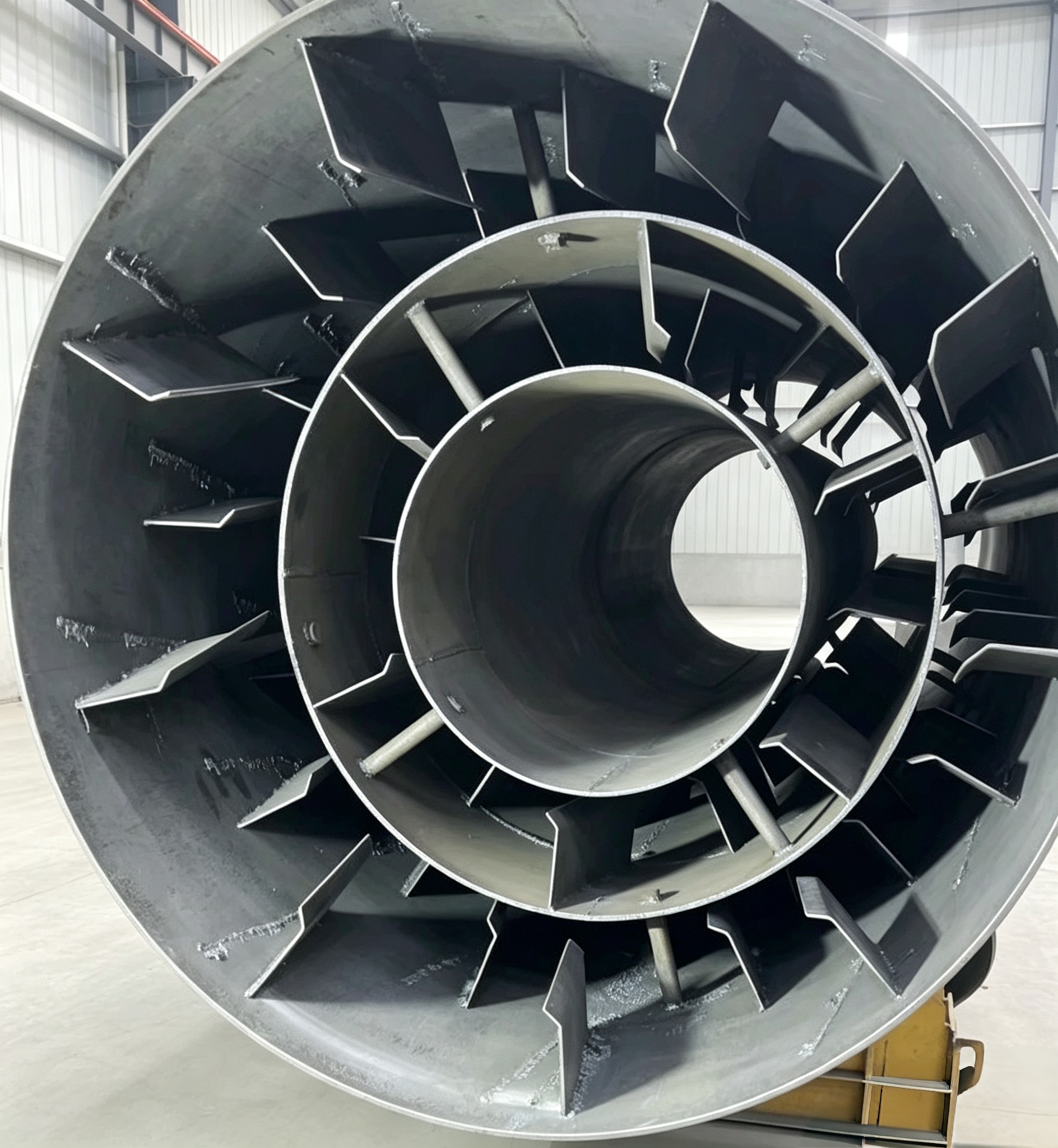

Internal structure

4.Core Advantages of Three Cylinder Structure

Compared with traditional single-drum machines, the three cylinder dryer has multiple advantages in sand drying. Firstly, circulating hot air extends heat exchange time, greatly improving thermal efficiency and cutting fuel consumption by 25%~35%. Secondly, the compact structure requires smaller workshop area under the same capacity, lowering civil construction cost. Moreover, staged mild heating prevents sand pulverization to guarantee finished sand quality.

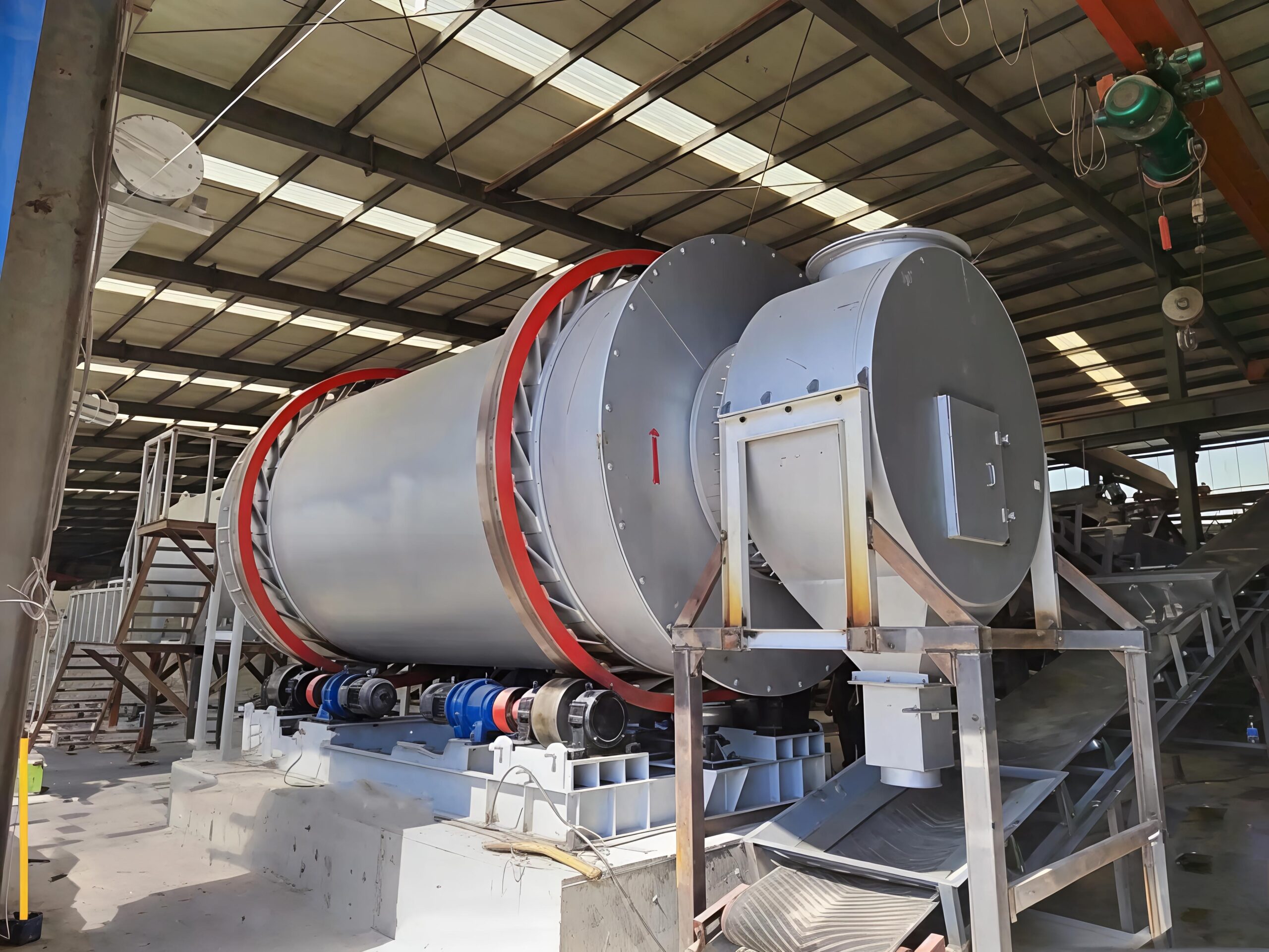

On-site photo

5.Material Selection & Durability

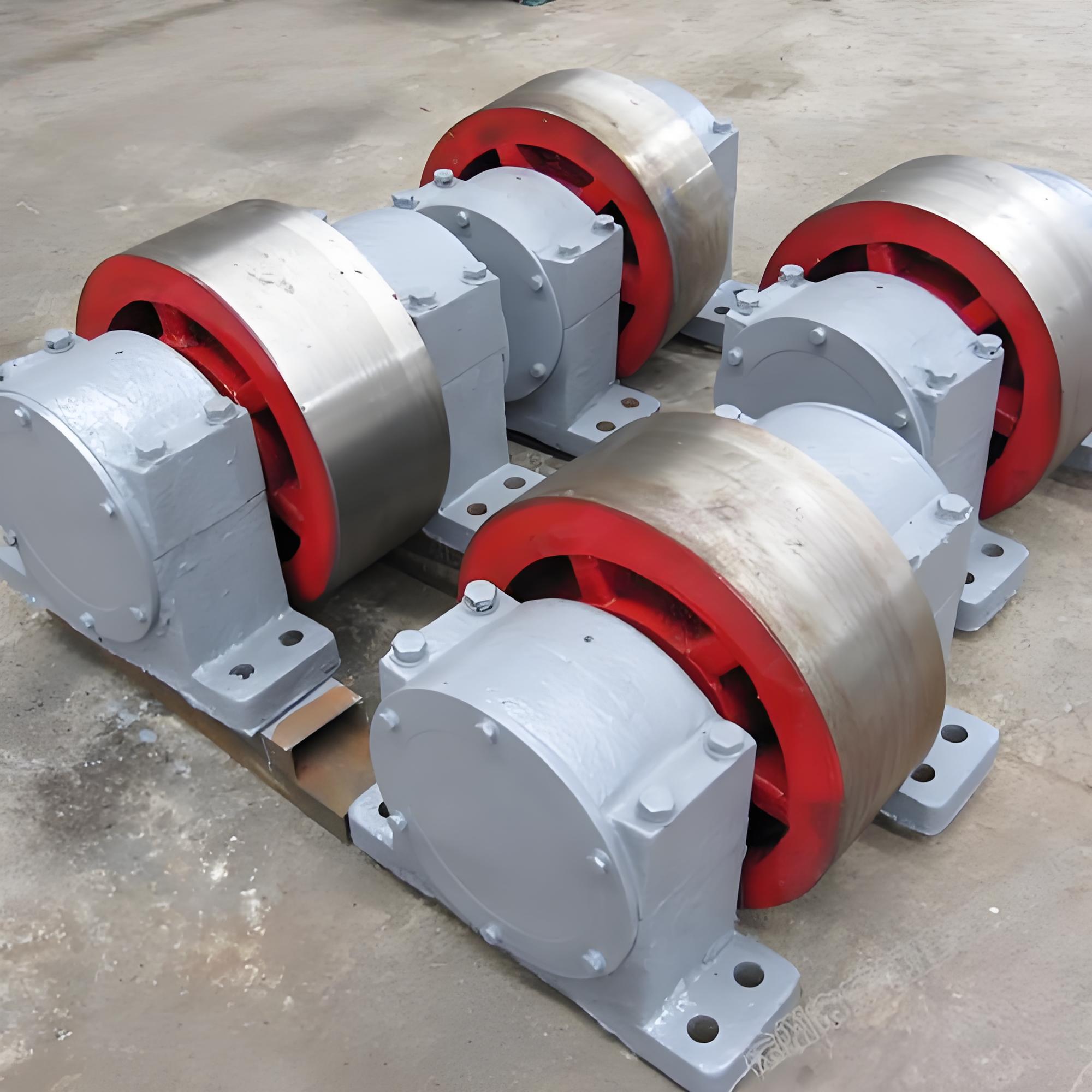

The drum body is mainly made of Q235B steel plate, and wear liners are optional for vulnerable zones. Riding rings and support rollers are cast steel forgings to bear heavy load during continuous operation, reducing breakdown frequency and extending service life. Premium materials enable the dryer to withstand long-term sand abrasion and high temperature.

6.Complete Sand Drying Process

Wet sand is fed into the three cylinder dryer by feeding conveyor. The rotating drum lifts materials constantly. The system discharges and purifies water vapor via the dust collector, while the machine continuously outputs qualified dry sand. Featuring low energy consumption, small footprint and stable operation, the three cylinder dryer becomes preferred equipment for sand drying in sand quarries worldwide.
