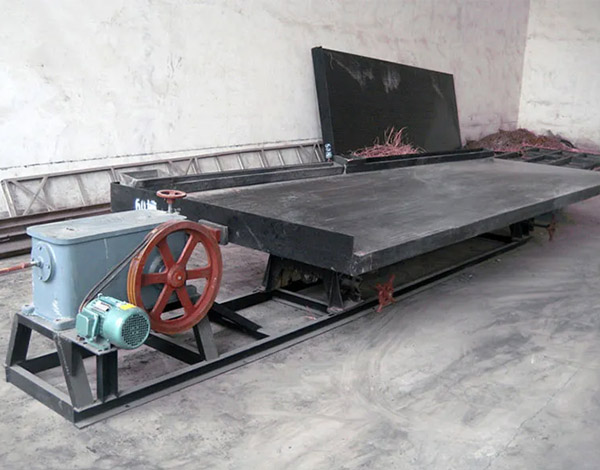

The shaking table is a gravity separation device used to separate fine particles.
Application areas:
Suitable for sorting tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium, coal, etc.
The shaking table is a gravity separation equipment that uses the asymmetric reciprocating motion of the bed surface to separate light and heavy minerals. Through continuous development and innovation, Zhongya Machinary has made it have the characteristics of large processing capacity and high recovery rate.

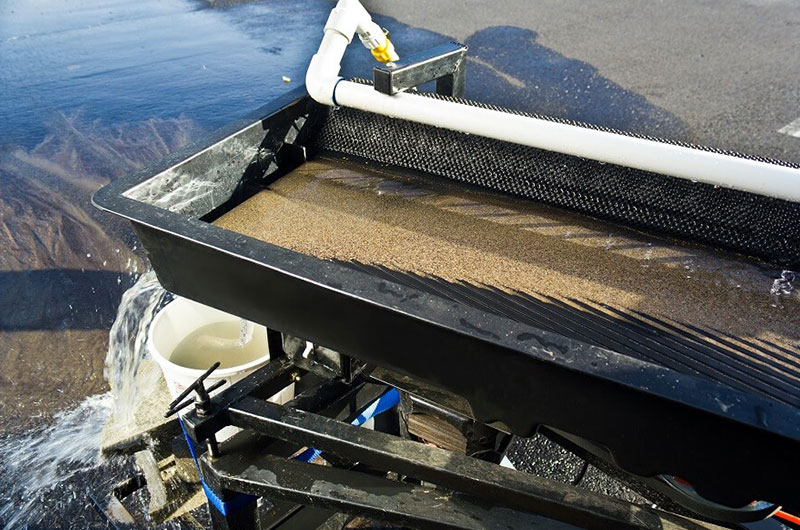

The shaking table is an inclined bed. Under the combined effect of the symmetrical reciprocating motion of the mechanical slate and the thin layer of inclined water flow, the mineral particles are arranged in loose layers and bands on the bed, so that the minerals can be sorted according to different densities.
| Name | bed surface for coarse sand | bed surface for fine sand | bed surface for slurry | |
| Bed | Length(mm) | 4450 | 4450 | 4450 |
| dimension | transmission end width(mm) | 1855 | 1855 | 1855 |
| concentrate ore width(mm) | 1546 | 1546 | 1546 | |
| Max Feeding Size(mm) | 2 | 0.5 | 0.15 | |
| Feeding volume(t/h) | 30-60 | 10-20 | 15-25 | |
| Feeding density(%) | 25-30 | 20-25 | 15-25 | |
| stroke(mm) | 16-22 | 11-16 | 8-16 | |
| Frequency( t/s) | 45-48 | 48-53 | 50-57 | |
| Cross Slope of Surface | 2.5°-4.5° | 1.5°-3.5° | 1°-2° | |
| mineral dressing area(㎡) | 7.6 | 7.6 | 7.6 | |
| Shape of bed surface | Rectangle | indention | Triangle | |
| Motor Power(KW) | 1.1 | 1.1 | 1.1 | |
| Driving type | Eccentric link structure | |||
