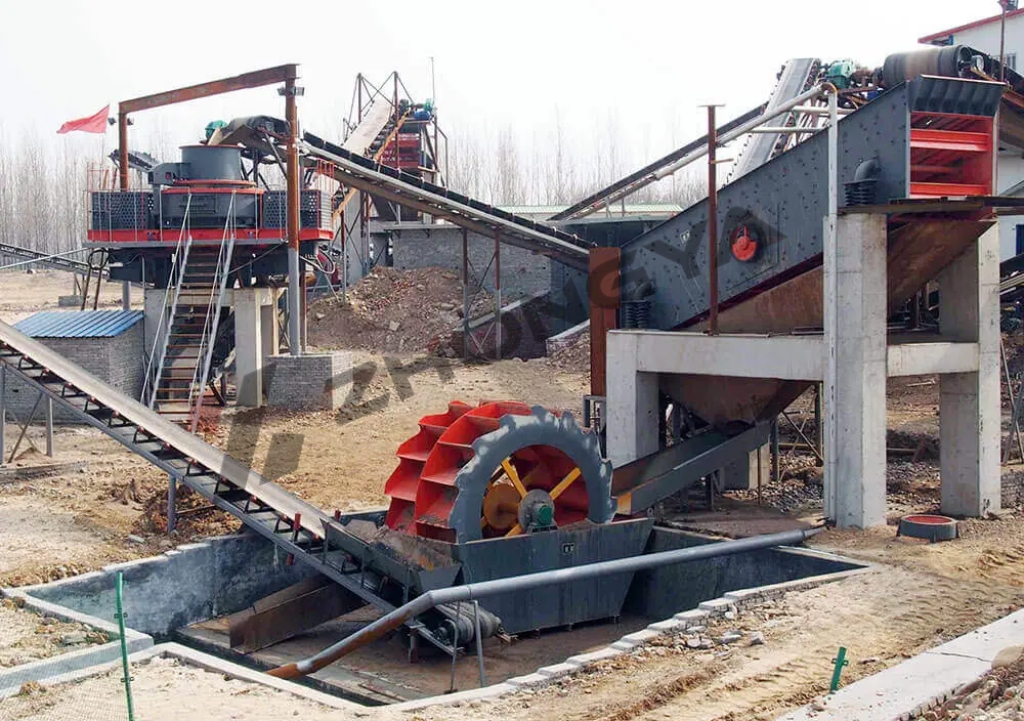

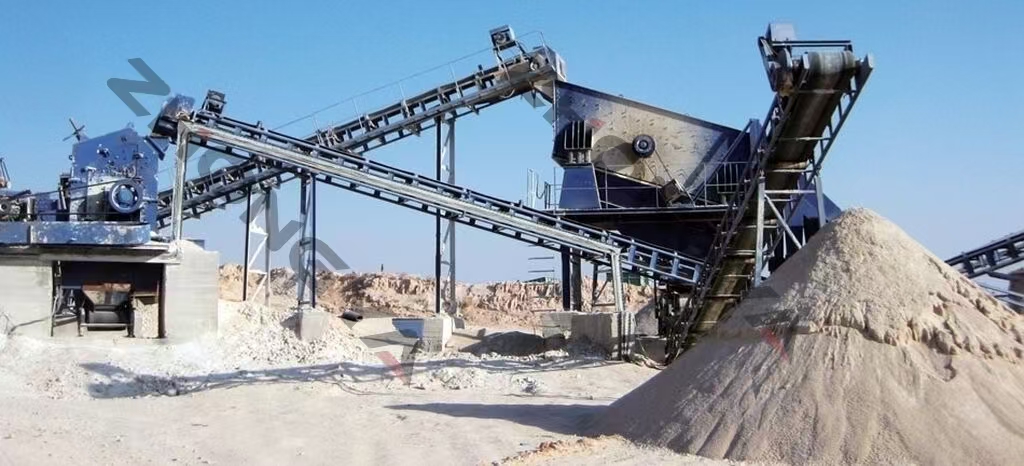

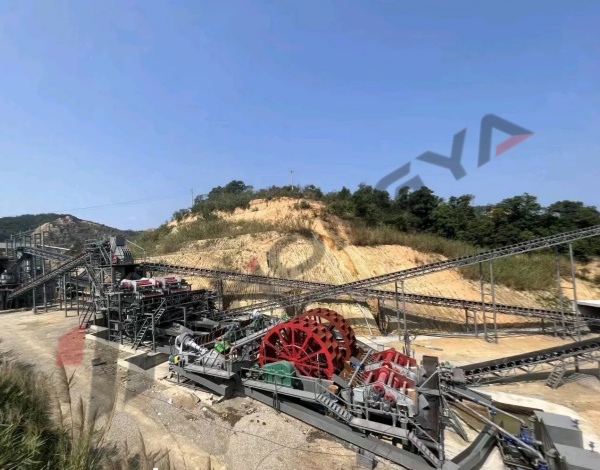

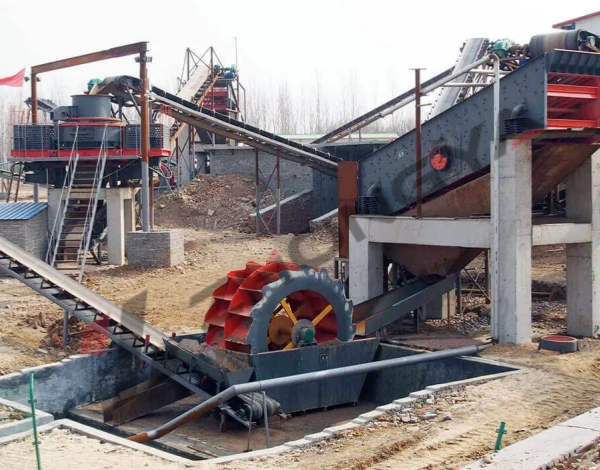

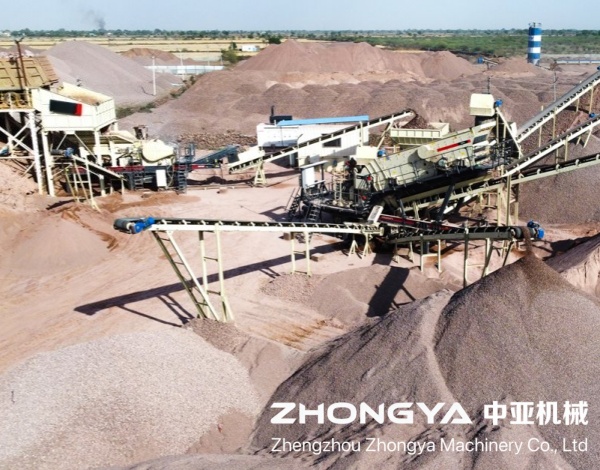

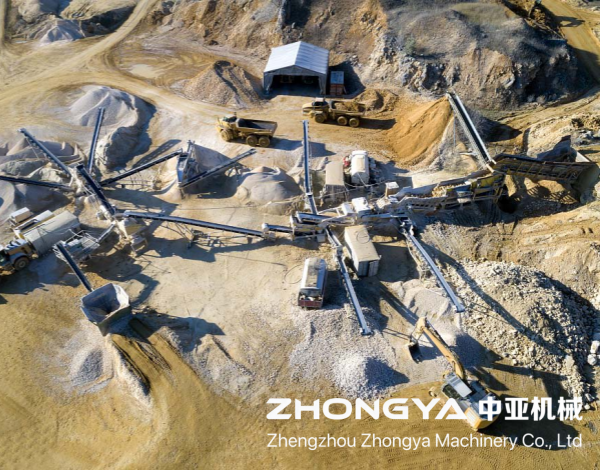

50-100tph Sand Making Plant

Process Introduction

Sand making plant is a special production line for producing sand and aggregate materials for construction. In the sand making plant, natural rocks, limestone, granite, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand. It is to replace the natural river sand for the buildings and construction industries which need high-quality aggregates. Usually the raw material is crushed by tertiary crushing process, including primary jaw crusher, secondary impact crusher or cone crusher, tertiary VSI sand crusher. To get high grade sand, sand washing machine could be added per requirement.

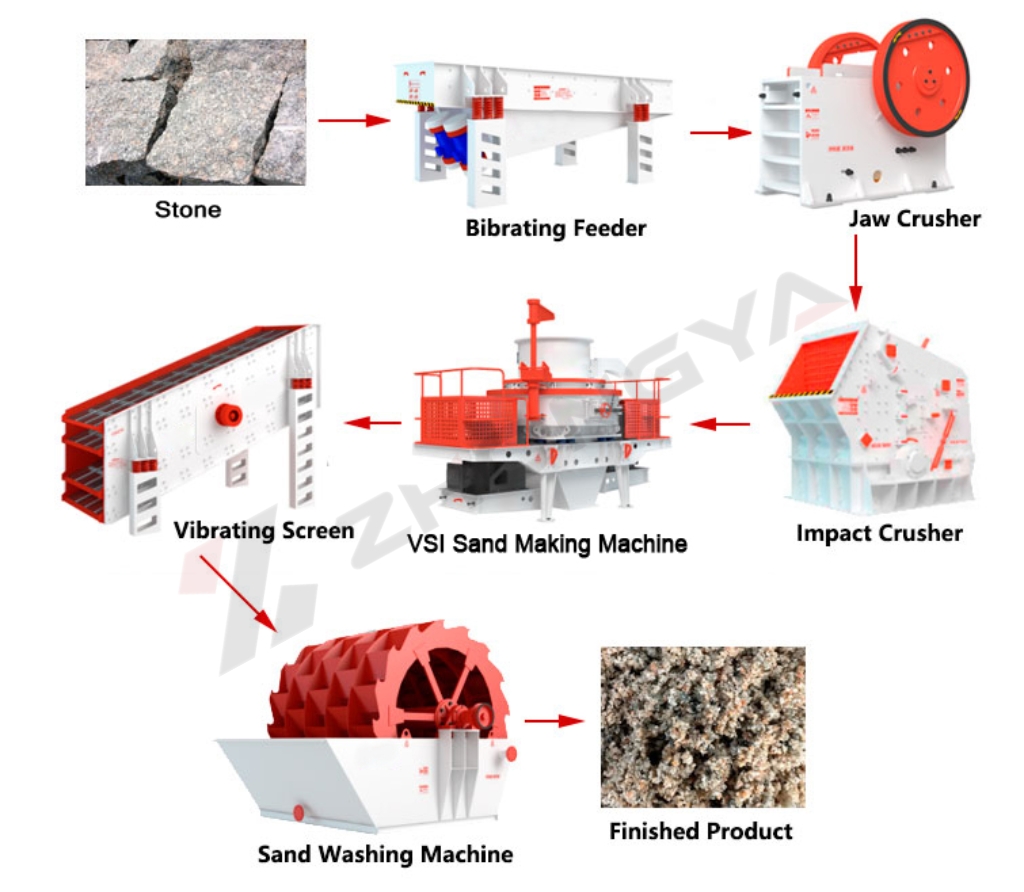

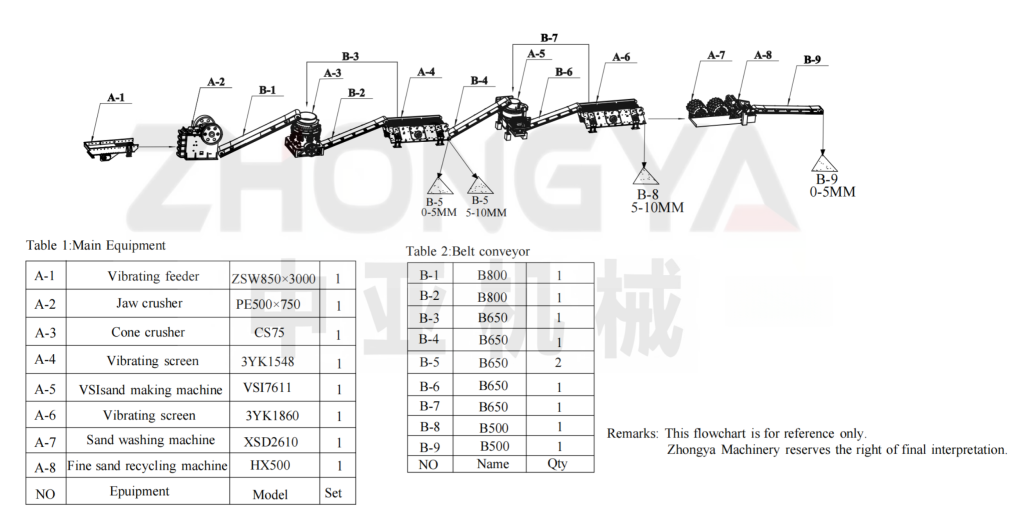

Sand production plant equipment workflow

1. Large stone material is crushed by jaw crusher and impact crusher firstly by the vibrating feeder regularly feeding.

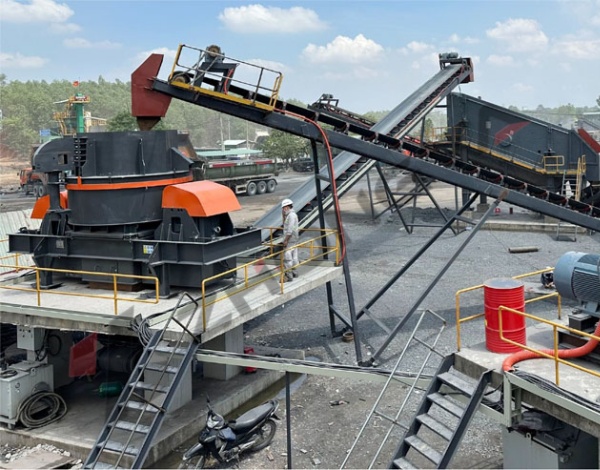

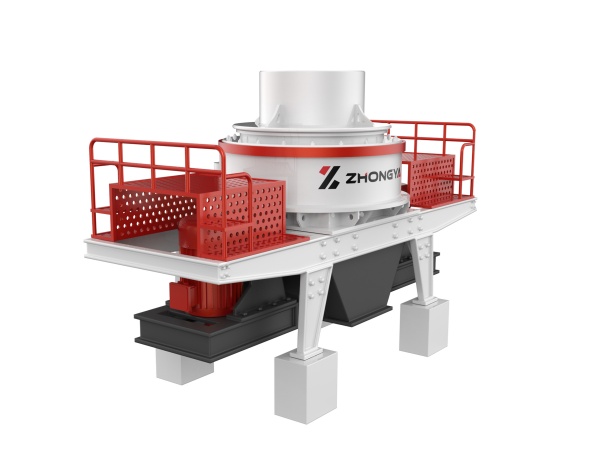

2. Then 0-40mm aggregate is transported by belt conveyor into VSI vertical impact crusher for making sand.

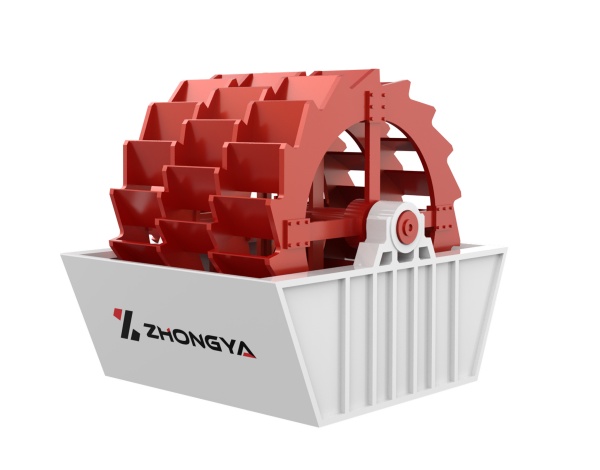

3. Material large than 10mm returns to VSI machine to crush again forming a closed loop. 5-10mm material can be partially finished according to the discharge requirements. Material less than 5mm enters sand washing machine to clean.

4. Here we could provide solution to meet different requirement. If you need 0.075mm fine sand, a fine sand recycling machine is a good choice. If 0-5mm sand is what you need, you could directly get it after screening, or get clean sand using sand washing machine, or quickly get high quality sand using fine sand recycling and dewatering machine.

Process advantages

• The process design is scientific and reasonable, effectively guaranteeing the quality and output of machine-made sand;
• Can crush medium, high hard and extra hard materials;
• High automation configuration, which greatly reduces the cost of human resources;
• The finished sand has excellent grading and adjustable fineness modulus;
