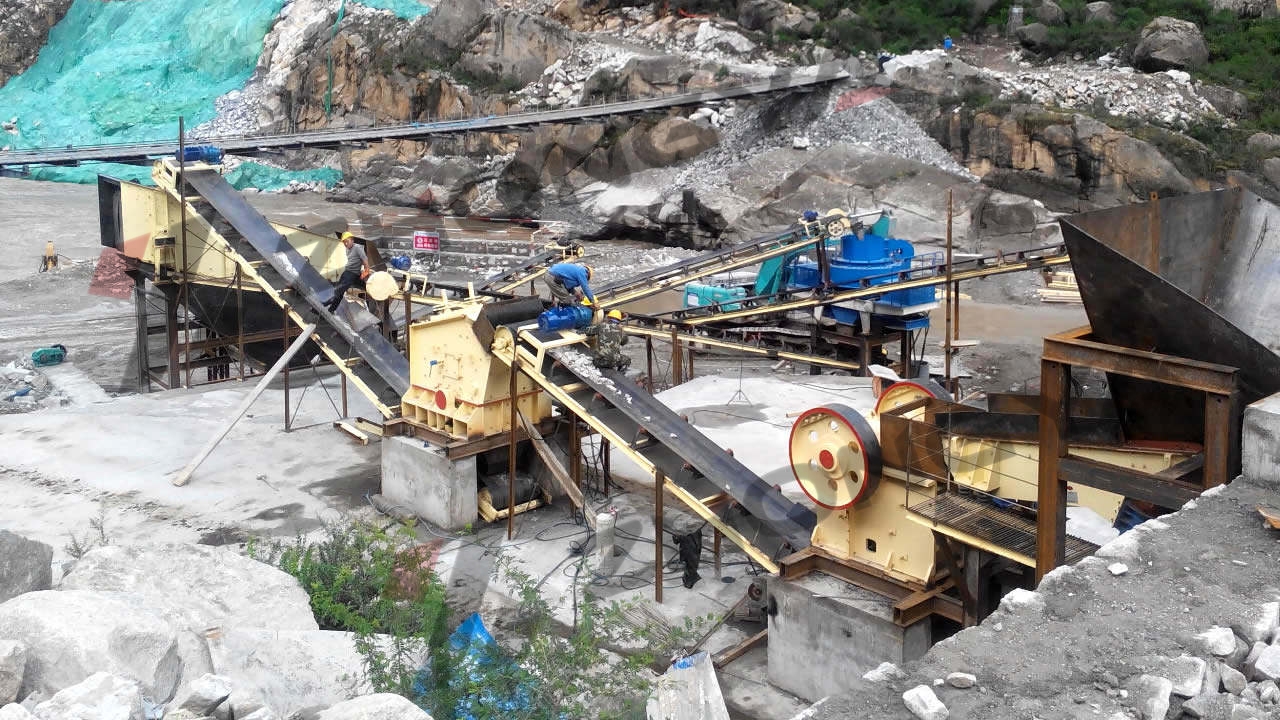

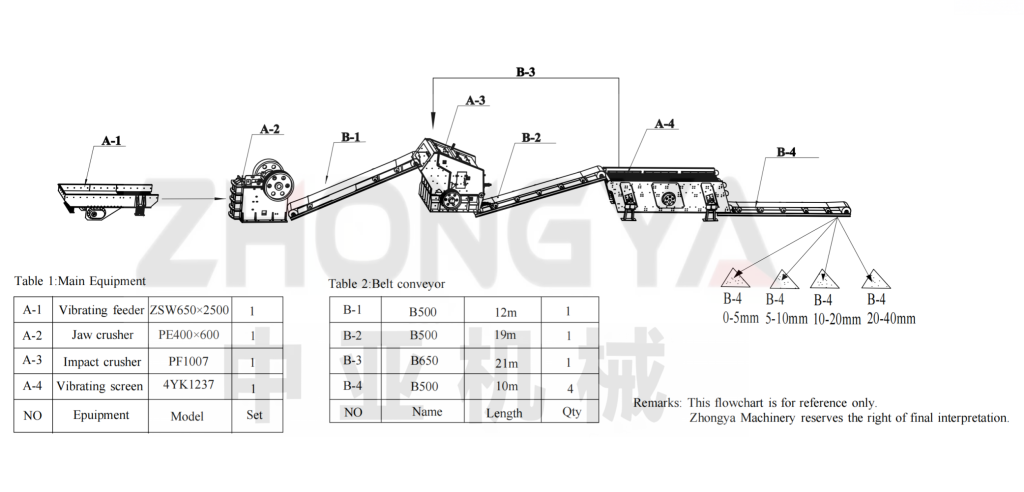

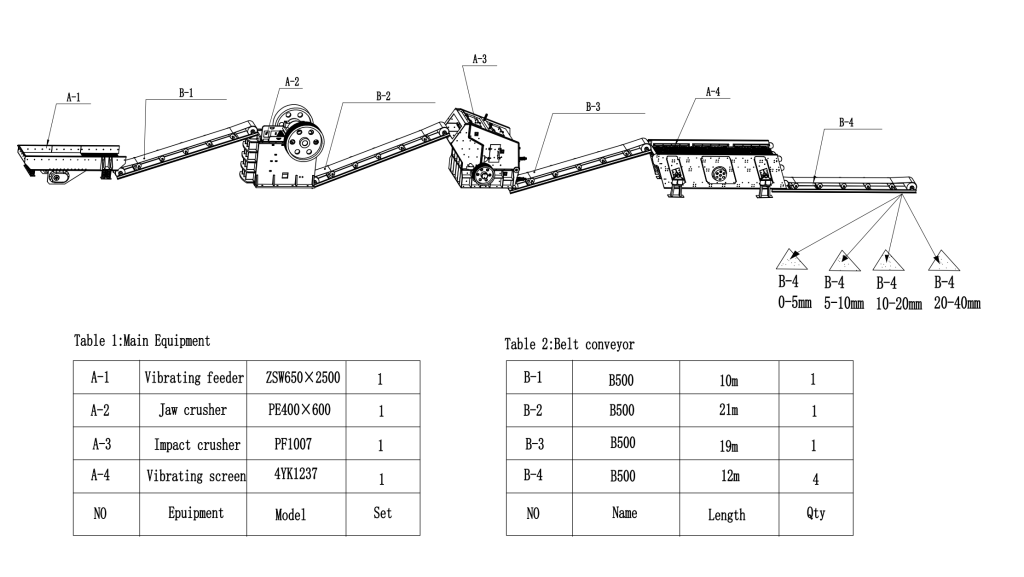

50tph stone crusher plant is composed of vibrating feeder, primary crushing machines jaw crusher , secondary crushing machines impact crusher or fine jaw crusher , vibrating screen, belt conveyor and other equipment. It is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite,etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

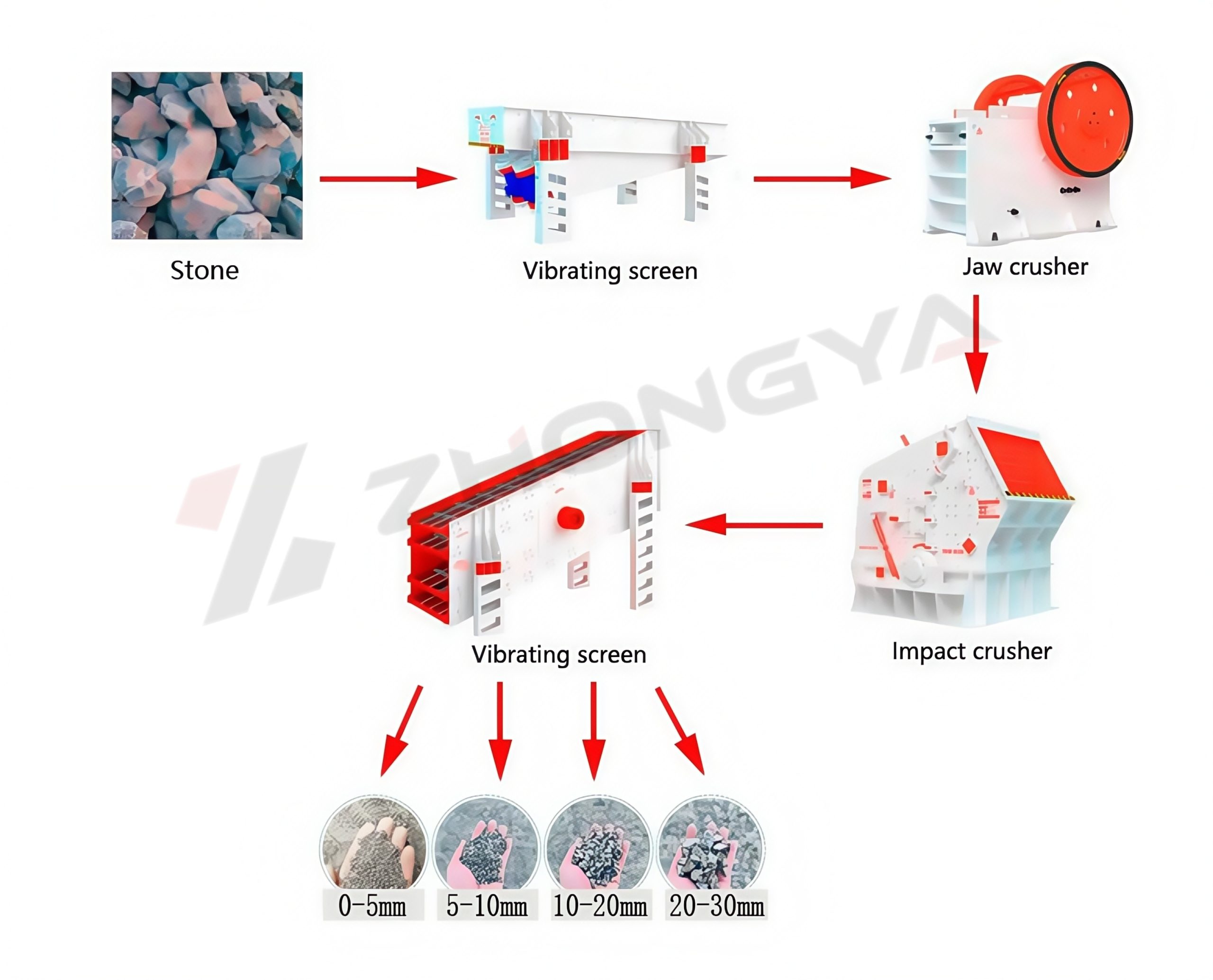

Feeding stage: the vibrating feeder feeds the material evenly, and the preliminary screening removes the soil and impurities.
Coarse crushing stage: primary crushing by jaw crusher, crushing large stones to below 150mm.
Medium and fine crushing stage: secondary crushing by impact crusher, output of stone below 40mm
Screening stage: Multi-layer vibrating screen classifies the materials according to specifications, and the unqualified materials are returned to crushing.
Finished product storage: different specifications of finished products through the conveyor into the respective silo
We are a professional machinery manufacturer that produces and sells our own products.
You can bring materials to the factory to test the machine
We will customize the solution according to your needs
60S Quick response
Minutes Technical reply
Hours design proposal
Capacity: 100-150 tonnes/hour (limestone, lapis lazuli and other soft rocks)
Feed size: ≤1000mm (can handle large soft rocks)
Discharge size: 0-3mm (fine sand), 3-10mm, 10-20mm, 20-40mm (adjustable)
Capacity: 180-220 tonnes/hour (granite/basalt)
Feeding size: ≤800mm (1000mm super-large can be customised)
Finished specification:0-5mm /5-10mm/10-20mm/20-30mm (adjustable)
Capacity: 80-100 tonnes/hour (granite, basalt and other hard rocks)
Feed size: ≤800mm (larger feed opening can be customised)
Discharge size: 0-5mm (mechanism sand), 5-10mm, 10-20mm, 20-31.5mm (adjustable)
