Vertical shaft composite crusher, also known as vertical shaft sand making machine, is suitable for fine crushing of medium hardness materials
Application fields:
Metallurgy, chemical industry, building materials, electric power, transport and other industries
Applicable materials:
Various ores, cement, gypsum, limestone, dolomite, quartzite, gangue, refractory materials, bauxite clinker, adamantine, glass raw materials, etc.
Vertical compound crusher is a kind of fine crushing equipment without screen bars and adjustable fine crushing equipment optimally designed on the basis of absorbing advanced fine crushing equipment at home and abroad, and it is a better model to replace cone crusher, roller crusher and ball mill in the world. Vertical Compound Crusher efficiently handles fine crushing of raw materials and clinker in cement plants. It also processes medium-hardness materials, including dolomite, coke stone, lead-zinc ore, serpentine, blast furnace slag, coal gangue, phosphorus ore, etc. It is suitable for the processing and crushing of artificial sand making or highway pavement stone material such as hard limestone, dolomite, granite and basalt.

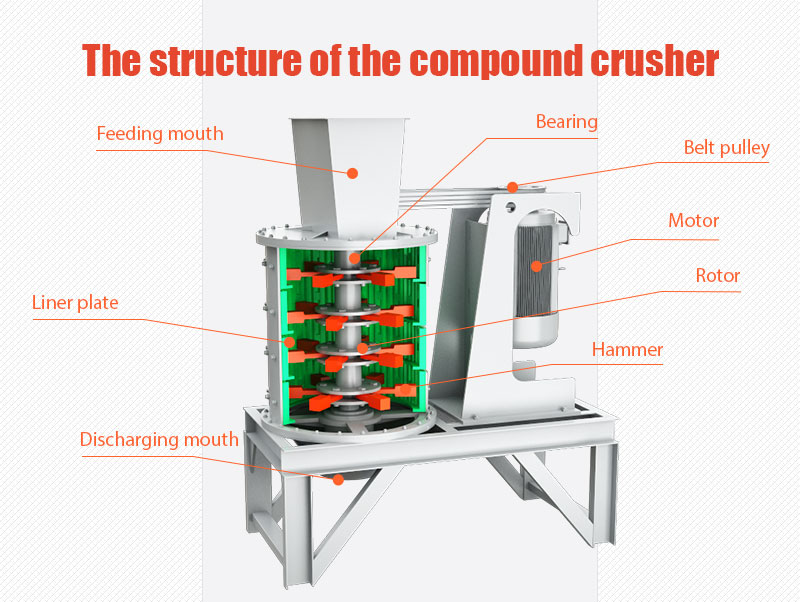

Materials from the upper part of the machine fall vertically into the high-speed rotating impeller, under the action of high-speed centrifugal force, and the other part of the umbrella form of shunting in the impeller around the material to produce high-speed impact and crushing, the material in the mutual impact, and will be in the impeller and the shell of the material between the formation of vortex mutual impact many times and crushed, from the lower through the discharge, the whole system to form a closed-circuit cycle, controlled by the screening equipment to reach the required size of finished products. The whole system forms a closed-circuit cycle, which is controlled by the screening equipment to reach the required particle size.
| Specification | Processing Capacity(t/h) | Motor Power(kw) |
| 800 | 5-15 | 30kw |
| 1000 | 10-30 | 55kw |
| 1250 | 20-60 | 90kw |
| 1500 | 30-80 | 110kw |
| 1750 | 40-100 | 160kw |
