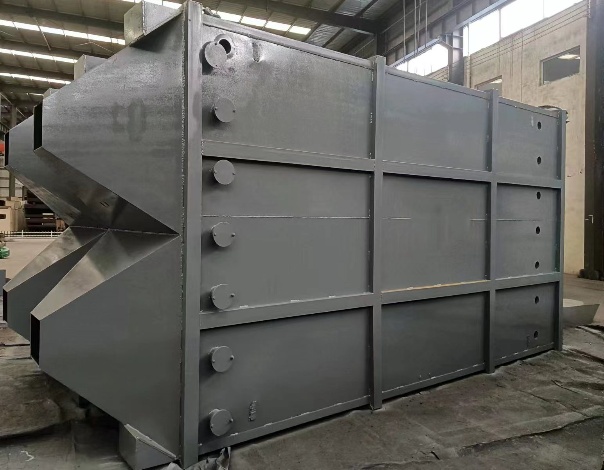

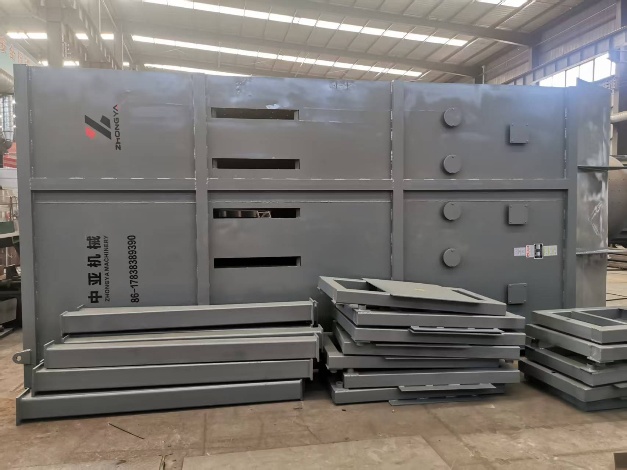

Square Box Vertical Dryer used in mining environments are specialized equipment designed to dry, dehydrate, or process mineral ores, coal, or other mined materials efficiently and safely. These devices are tailored to withstand harsh conditions and handle large volumes of raw materials.
Application fields:Metallurgy, building materials, light industry, chemical industry
Applicable materials:Drying limestone, sand, coal, slag, clay, wood chips, sawdust, mineral powder, etc.
The square box vertical dryer is a new type of dryer specially designed and developed for the special characteristics of coal moisture removal. This series of dryer is suitable for all kinds of production scale of coal production line supporting equipment, using a unique air duct type wind distribution, so that the hot air and coal surface uniform contact, drying effect greatly improved, high heat utilization rate, fast drying speed. This series of dryer structure is compact, covers an area of small, stable and reliable operation, suitable for annual output of 50,000 tonnes of coal production line above the large and medium-sized, but also can be used for other industries. Other industries can also use it to dry various granular materials.
The Square Box Vertical Dryer made from heavy-duty, abrasion-resistant materials like stainless steel or coated metals to endure tough mining environments.Rectangular or box-shaped chambers optimized for stacking or continuous processing of bulk materials.Commonly utilize hot air circulation, heating elements, or indirect heat transfer to facilitate drying.Advanced fans or blowers ensure uniform airflow, critical for even drying of large quantities.Equipped with precise temperature controllers, humidity sensors, and automation for consistent operation.
| Model | Capacity (t/h) | Blower power (kw) | Draught fan power （kw) | Vibration motor power (kw) | Run time (h) | Air supply temperature (℃） | Fuel consumption per 100tons of finished products |
| LGF10 | 10 | 75 | 55 | 0.15*2=0.3 | 2.5~3.5 | T max=160 | 2.5~4t |
| LGF15 | 15 | 90 | 75 | 0.15*2=0.3 | 2.5~3.5 | T max=160 | 2.5~4t |
| LGF20 | 20 | 110 | 90 | 0.15*6=0.9 | 2.5~3.5 | T max=160 | 2.5~4t |
| LGF25 | 25 | 110 | 90 | 0.15*8=1.2 | 2.5~3.5 | T max=160 | 2.5~4t |
| LGF30 | 30 | 132 | 110 | 0.15*10=1.5 | 2.5~3.5 | T max=160 | 2.5~4t |
| LGF35 | 35 | 132 | 110 | 0.15*12=1.8 | 2.5~3.5 | T max=160 | 2.5~4t |
| LGF40 | 40 | 160 | 132 | 0.15*14=2.1 | 2.5~3.5 | T max=160 | 2.5~4t |
