Magnetic separator is one of the most commonly used in the industry, and it is suitable for separating materials which have magnetism differences. Magnetic separator can be widely used in mining machinery, timber, ceramics, chemistry and food, etc. industries.
Application fields:
Magnetic separator is used for particle size below 3mm magnetite, pyrrhotite, roasted ore, ilmenite and other materials wet magnetic separator, and also for coal, non-metallic minerals, building materials and other materials iron remover.

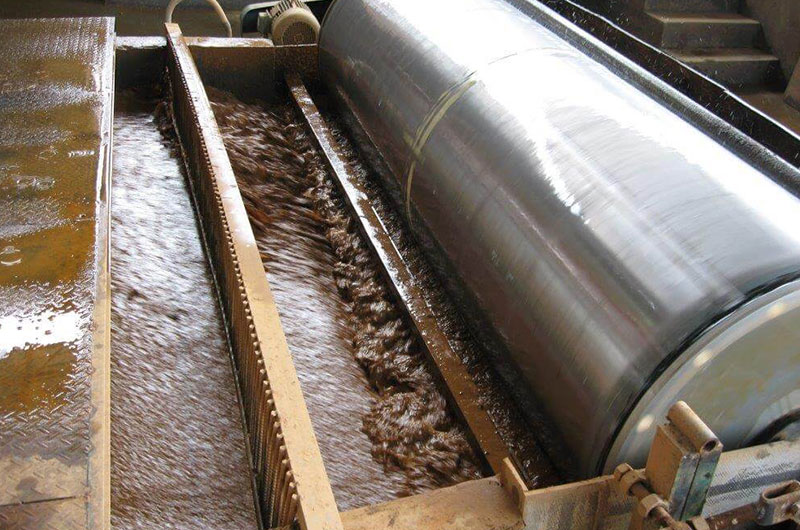

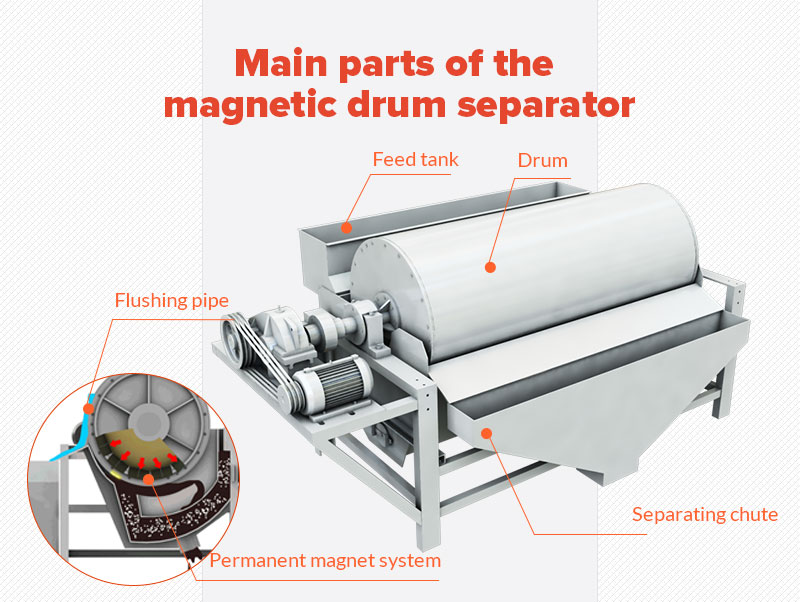

Magnetic separator is a screening device used to remove iron powder from recycled powdered particles.Materials enters chute through ore tank, and then gets into separating zone by waterpower. Minerals with strong magnetism is absorbed on the barrel’s surface under the force of magnetic field and get into the ore concentrate outlet along with the rotation of cylinder. After leaving the magnetic field, they flow into ore concentrate box by the action of gravity and flushing water. Gangue and ore with weak magnetism are discharged into a pipe in the opposite direction of cylinder rotation.
| Model | Magnetic field intensity (oe) | Capacity (t/h) | Power (kw) |
| CTB600X900 | 1450 | 8-15 | 1.1 |
| CTB600X1800 | 1500 | 15-25 | 2.2 |
| CTB750X1800 | 1550 | 30-45 | 3 |
| CTB900X1800 | 1650 | 35-60 | 4 |
| CTB1050X2400 | 1650 | 60-95 | 5.5 |
| CTB1200X3000 | 1650 | 80-150 | 7.5 |
| CTB1500X3000 | 1650 | 120-200 | 11 |
