Impact Crusher

PRODUCT DESCRIPTION

Impact crusher absorbs the more advanced crushing technology at home and abroad, and adopts a large number of new wear-resistant materials for the refined equipment of the rotor and crushing cavity for different applications, which greatly improves the wear resistance, and the equipment performance and processing capacity are greatly improved. improve. This crusher optimally processes medium-hard, low-abrasive aggregates in industrial crushing applications.

FEATURES

• Strong performance
  It adopts a heavy-duty and high-strength rotor design, which has stronger impact and crushing force and greater kinetic energy, so that large pieces of material are not afraid of crushing.
• Wide range of uses
  It can be used for multiple purposes. Adjusting the impact frame's position converts the crusher between coarse crushing and medium/fine crushing modes.
• Large feeding size
  the maximum feeding length can reach 1000mm, and large pieces of material can be fed directly to the crusher.It has a compact structure and strong rigidness, and the rotor has big rotational inertia.
• Easy maintenance
  The frame opens easily for convenient replacement of wearing parts or complete machine overhaul.

WORKING PRINCIPLE

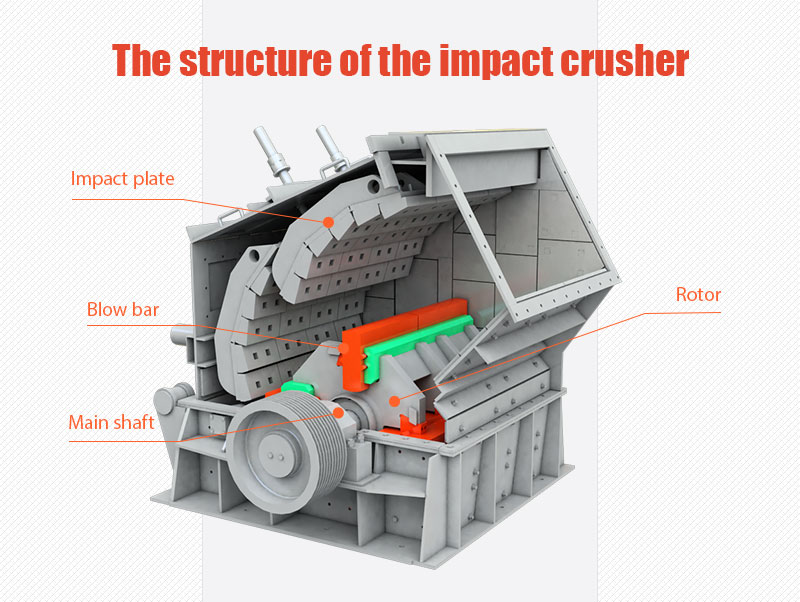

The impact crusher is a crushing machine that uses impact energy to crush materials. When the machine is working, the rotor rotates at high speed driven by the motor. Upon entering the plate hammer action zone, the material impacts the rotor's plate hammer and undergoes crushing. Then it is thrown to the impact device and crushed again. The material rebounds off the impact liner and returns to the plate hammer action zone for secondary crushing. The crushing process repeats continuously until the material reaches the required particle size and exits through the discharge port.
