The concentrator is a kind of gravity separation equipment, suitable for dehydration of concentrate and tailings in ore dressing plants.
Application :
Metallurgy, chemical industry, coal, non-metallic ore dressing, environmental protection and other industries.

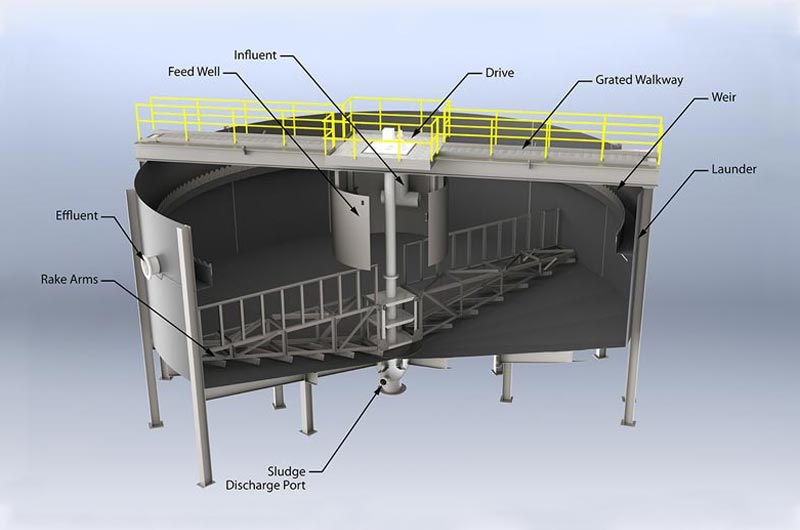

The concentrator is a continuously working concentrating and clarifying equipment, mainly used for dehydrating concentrate and tailings slurry in wet mineral processing operations. It is also widely used for concentrating and purifying solid slurries in coal, steel, chemicals, building materials, water sources, sewage treatment, etc.
| Model | STL30 | STL60 | STL80 | STL100 | STL120 |
| Capacity(t/h) | 2-3 | 10-15 | 35-40 | 80-120 | 100-130 |
| Feeding Granularity(mm) | 0-4 | 0-6 | 0-6 | 0-6 | 0-6 |
| Feeding Concentration(%) | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
| Backwash Volume(t/h) | 4-6 | 10-15 | 17-25 | 40-60 | 70-80 |
| Concentrate Output(kg/t) | 10-20 | 30-40 | 60-70 | 70-80 | 100-120 |
| Motor Power(kw) | 1.5 | 7.5 | 15 | 18.5 | 22 |
| Cone Speed(r/min) | 600 | 460 | 400 | 360 | 360 |
| Pressure Water(mpa) | 0.12 | 0.25 | 0.35 | 0.4 | 0.5 |
| Dimensions(mm) | 1180×1140×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 | 2700×2200×2600 |
| Machine Weight(kg) | 400 | 1300 | 2000 | 2500 | 3000 |
