Disc Feeder

PRODUCT DESCRIPTION

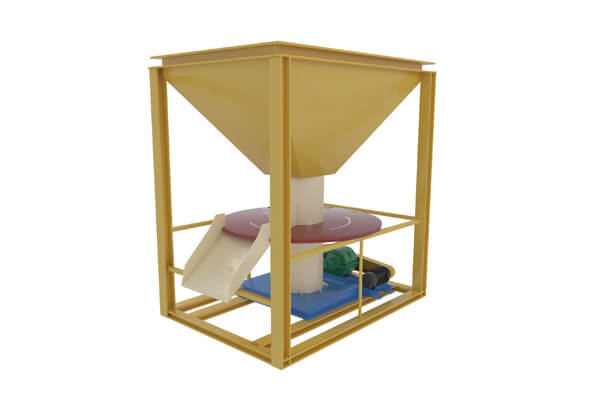

Disc feeder consists of driving device, feeder body, conveyor and other components, the use of disc feeder can make the material uniformly into a piece of equipment, so that the next process is carried out normally, suitable for powder, granular or small lumps of materials, such as coal powder, cement, clinker, limestone, clay, gypsum, slag and so on.

FEATURES

• Good performance
  Simple structure, easy maintenance, low cost
• Strong operability,
  Large bearing capacity, smooth operation.
• Easy to operate
  Even feeding, good continuity
• Easy to maintain
  The liner plate adopts small wear-resistant steel plate, long service time

WORKING PRINCIPLE

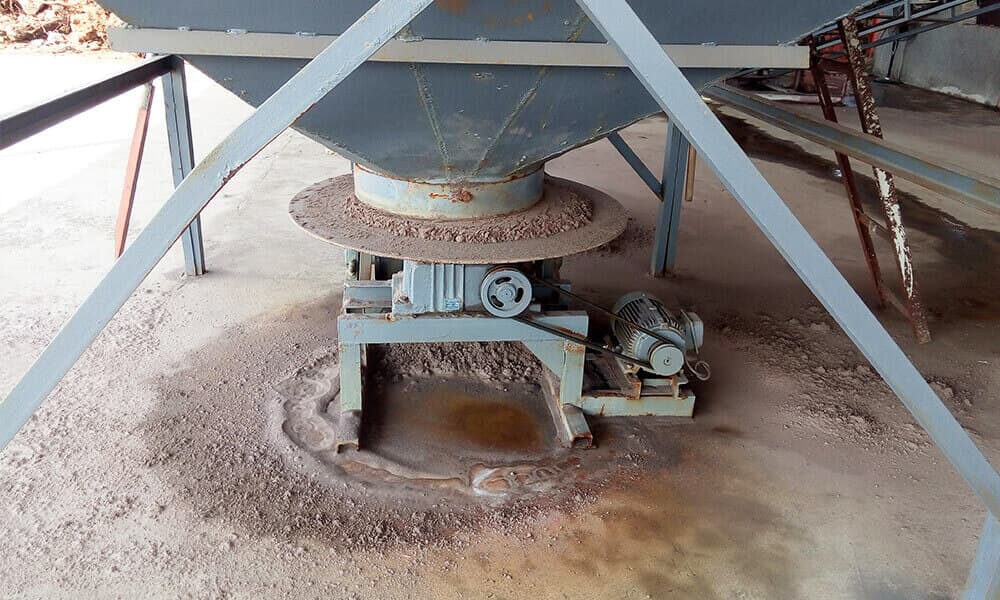

The bulk material is loaded into the receiving cylinder from the hopper, when the disc rotates, the material is evenly scraped by the scraper on the disc to the outside of the disc and falls down, so that with the rotation of the disc, the material is evenly scraped into the receiving hopper by the scraper. Adjusting the clearance between the discharging knife and the disc can also control the amount of material feeding.
